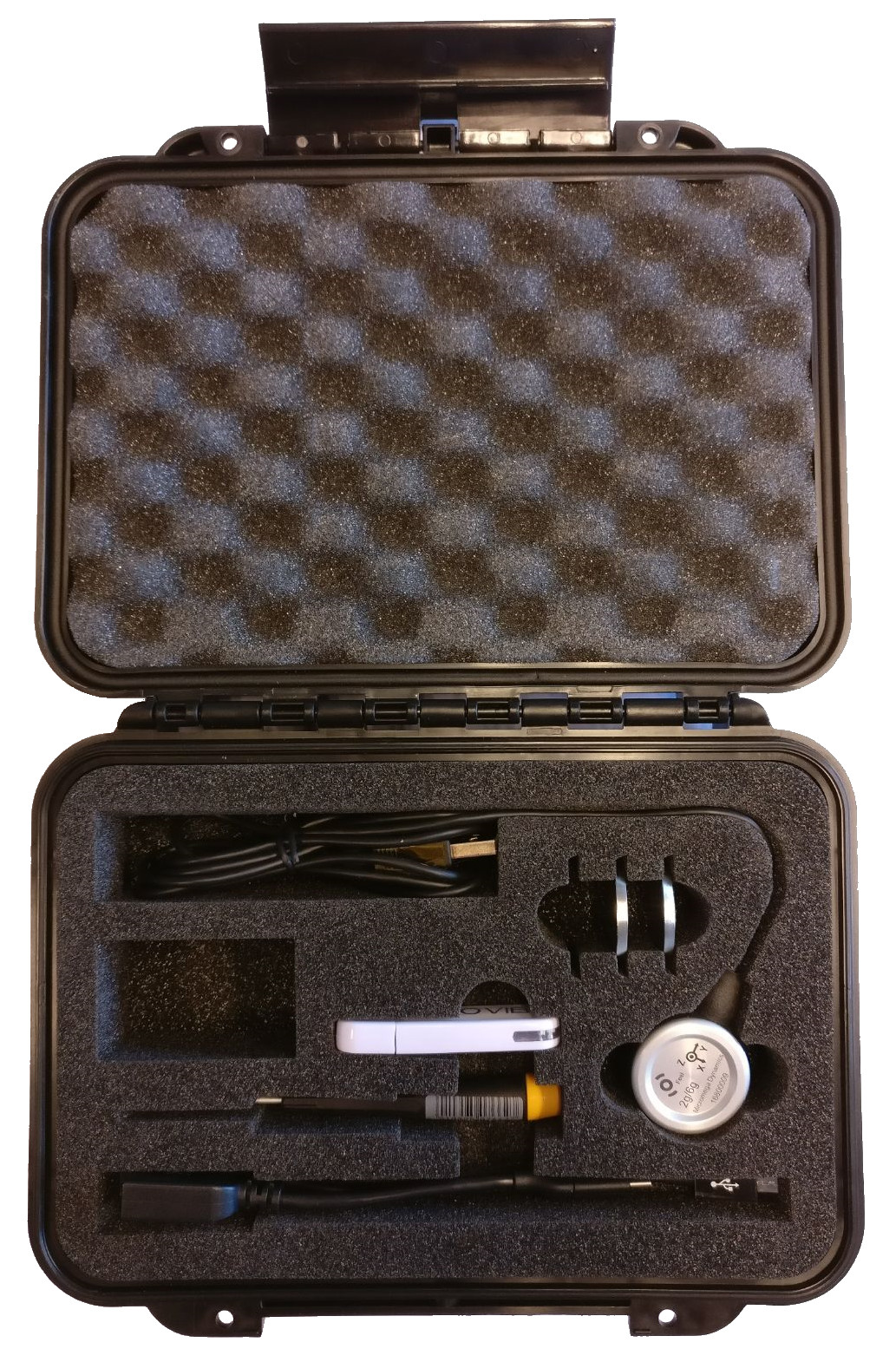

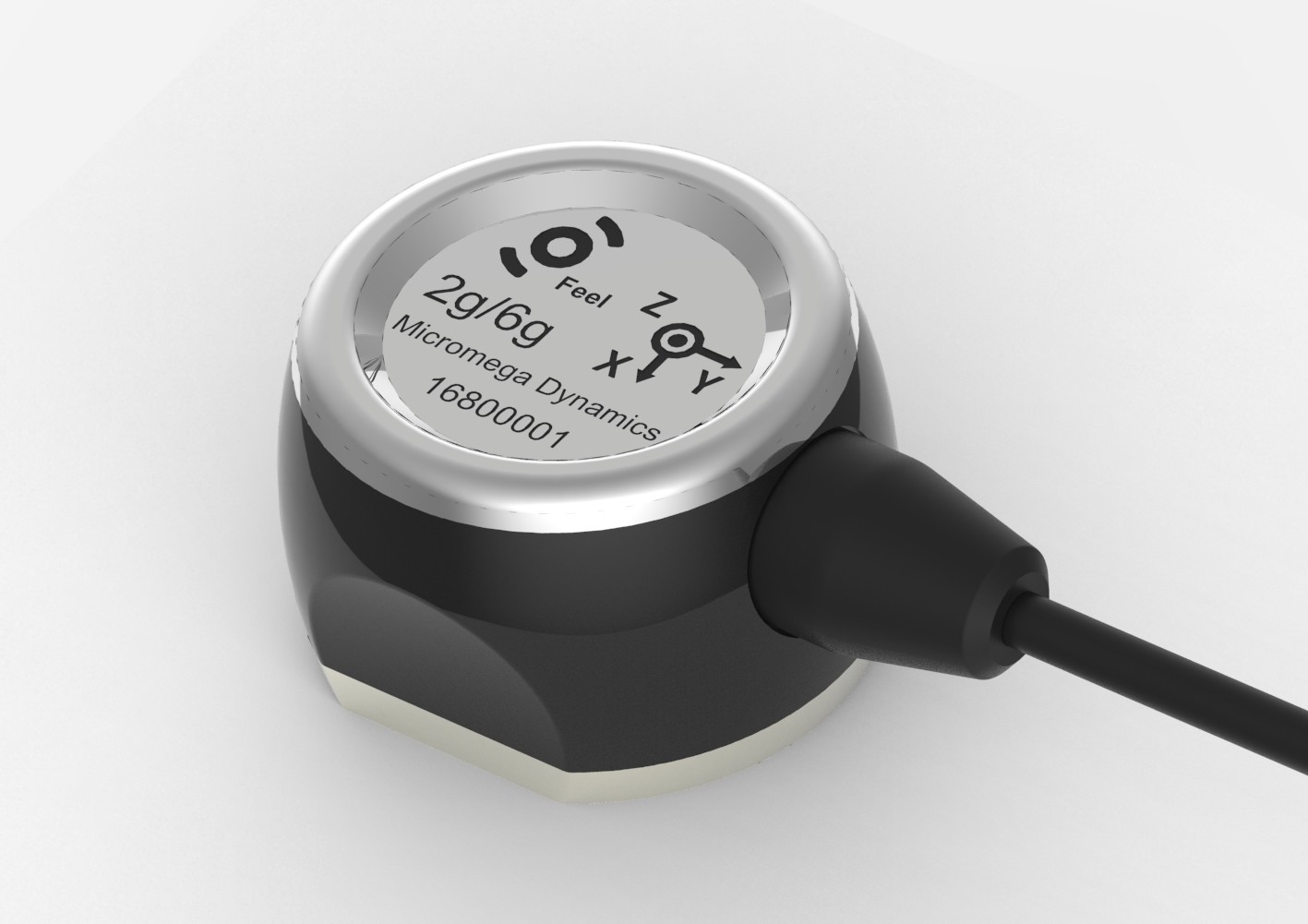

USB Accelerometer Vibration Sensor Recovib Feel 3 Axes Shock & Vibration
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | Belgium |
| Axes | 3 axis accelerometer |
| Software Included | Yes (Android & Windows) |
| Protection Grade | IP67 |
| Low Frequency Limit | 0Hz (DC) |
| Case Material | Aluminium |
| MPN | RECOVIB-FEEL |
| Velocity Range | 2/6G, 15G |
| Resolution | 16 bits |
| Form Factor | Handheld |

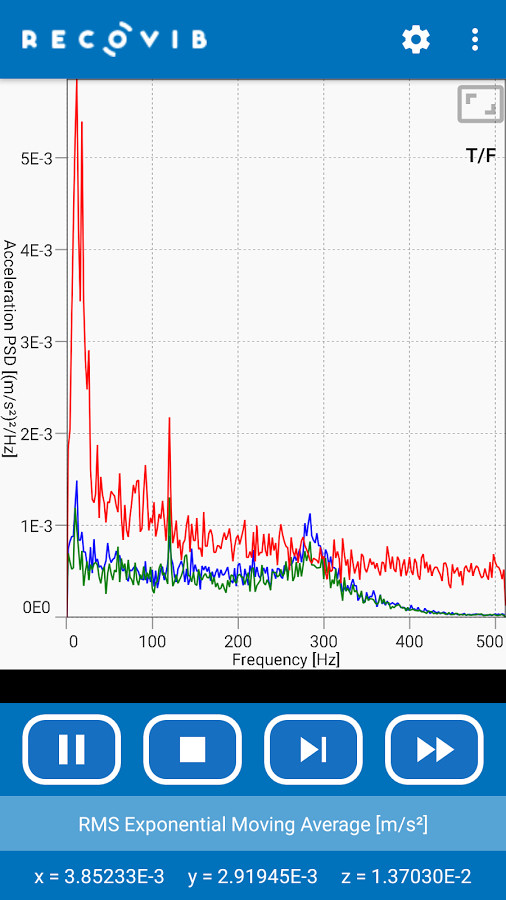

3-AXIS SHOCK & VIBRATION SMART PROBE PROPERTIES3 axis accelerometerDC to 250 Hz useful bandwidthLow noiseCompact and rugged designProtection grade IP67 POSSIBLE USE“Quick & dirty” vibration monitoringReal-time vibration analysisReal-time frequency and time analysisVibration diagnosisVibration modal analysisMachine tools - Automotive - AviationStructural analysis and Health Monitoring BENEFITSRECOVIB Feel has been designed for performing an immediate vibratory analysis. It is connected to an Android device or tablet PC via a USB connection. The supplied application enables the streaming of real-time vibration data on a chart in the time domain and in the frequency domain.While streaming, it is possible to record vibration data in order to replay it in a data viewer, on your smartphone or your PC. The viewer allows for a detailed analysis of the vibrations recorded in the time domain and in the frequency domain. Various signal processing options are available: high-pass, low-pass and band-pass filters, integrator filters (velocity mode) and dual-integrator filters (displacement mode).In the frequency domain, several FFT-based computations are offered : Amplitude Spectrum Peak and RMS, Power Spectrum, Power Spectral Density and Amplitude Spectral Density. CERTIFICATIONS STANDARDSTANDARDREFERENCELIMIT LEVELEMC COMPLIANCERadiated EmissionEN 55016-2-3/CISPR 16-2-3EN/IEC 61000-6-3 30MHz-1GHzElectrostatic discharge immunityEN/IEC 61000-4-24kV by contact 2,4& 8kV in air Criterion BMagnetic Field ImmunityEN/IEC 61000-4-830 A/m 50 & 60 Hz Criterion ARadiated, radio-frequency, electromagnetic field immunityEN/IEC 61000-4-380 MHz – 1GHz 10V/m1.4-2.0 GHz 3 V/m2.0-2,7GHz 1V/mAM 80% 1kHZ Criterion ADUST & WATERINGRESS PROTECTION LEVELDegree of Protection provided by enclosures (IP code)IEC60529IP67 SPECIFICATIONSMEASUREMENT CHARACTERISTICSModel±2g or ±6g±15gLower frequency limit0Hz (DC)Passband frequencies x, y, z axes (-3dB)250 HzOutput unitm/s2 - gStreaming rates (per channel)1024 samples per secondNon-linearity±0,5 % F.S.±0,3 % F.S.Residual noise density30μg/√Hz300μg/√HzResidual noise (250Hz bandwidth)475 μg4.75 mgTransverse sensitivity± 2%Sensor technologyMEMSENVIRONMENTAL CHARACTERISTICSOperating temperature range-10 .. 50°CTemperature coefficient of sensitivity±0.01 %/°C±0.01 %/°CTemperature drift of zero point±0.4 mg/°C±1 mg/°CProtection gradeIP67MECHANICAL DATADimension46.8 x 30 x 23 mmWeight45.3 gCase MaterialAluminiumAUTONOMYAverage Power Consumption (idle)39.15 mWAverage Power Consumption (streaming)57.35 mWSOFTWAREOutput formatBinary REQUIREMENTSANDROIDMINIMUM CONFIGURATIONRECOMMENDED CONFIGURATIONMinimum SDK Version : Android 4.4(Kitkat) – API Level 19Target SDK Version : Androidi 7.0(Nougat) – API Level 24RAM Memory : 2GBRAM Memory : 4GB or moreUSB OTG – USB HostUSB OTG – USB HostWINDOWSMINIMUM CONFIGURATIONRECOMMENDED CONFIGURATIONWindows 7Windows 1064-bit operating system, x64-based processor64-bit operating system, x64-based processorRAM Memory : 2GBRAM Memory : 4GB (8GB or more for large projects manipulation) DirectX10 compatible GPU
