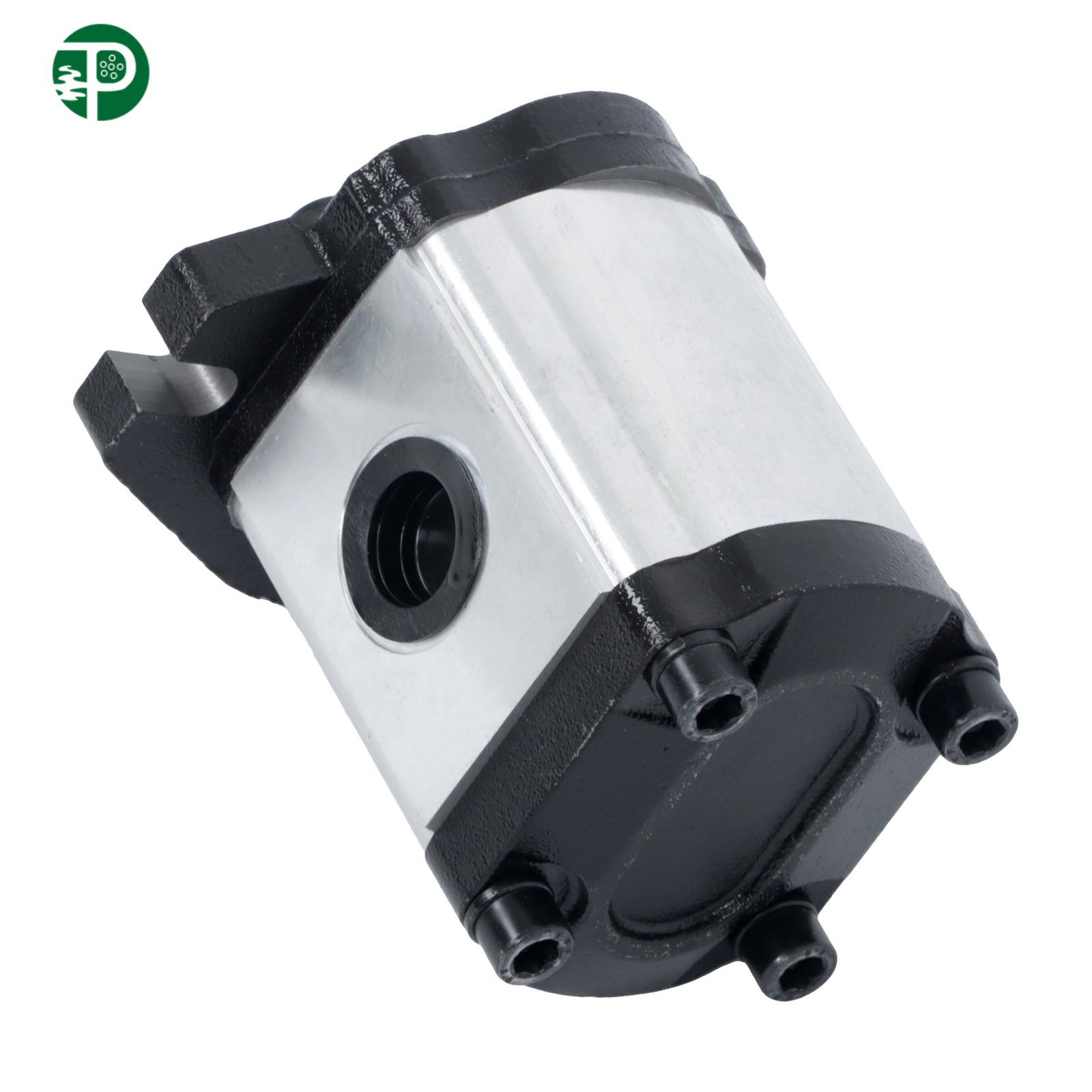

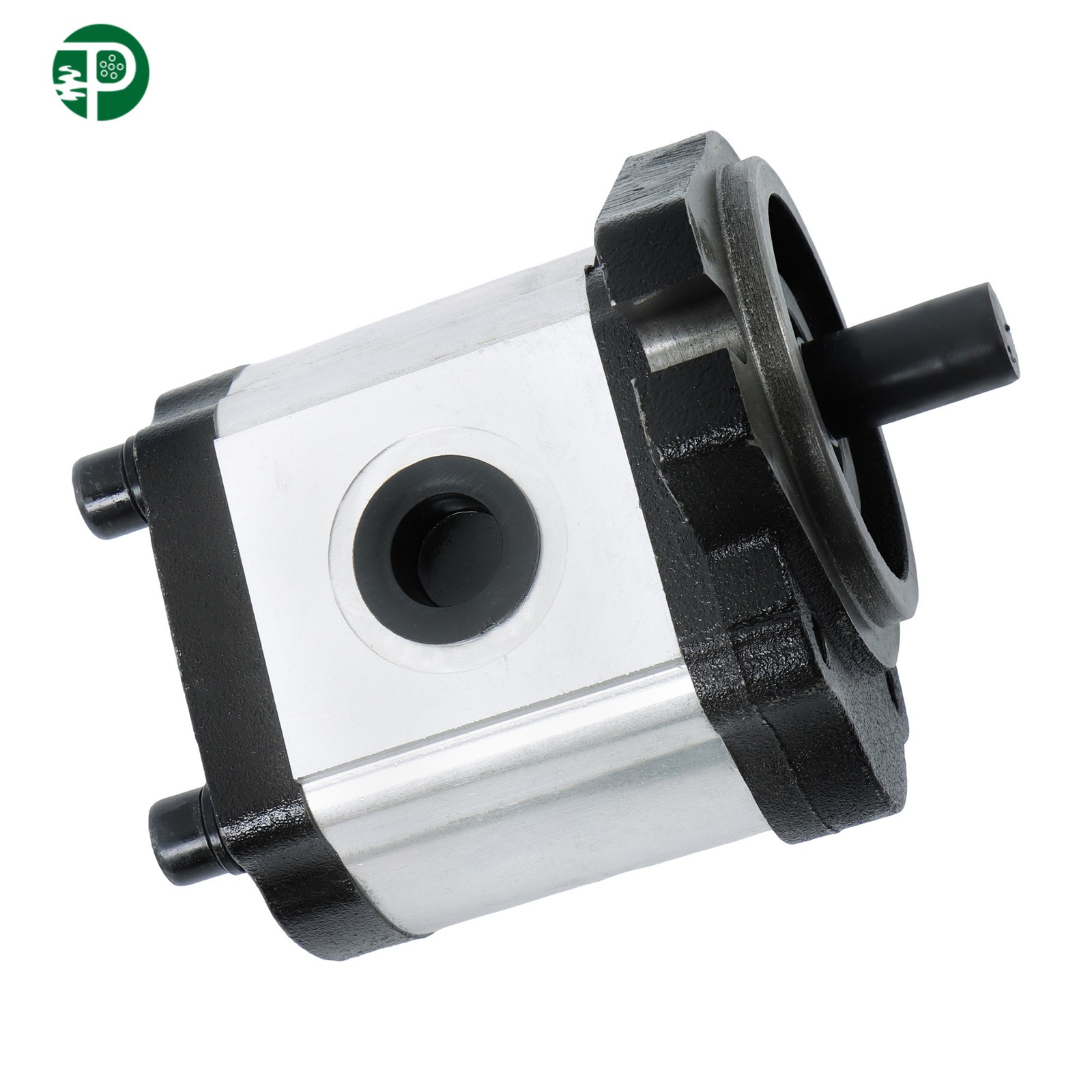

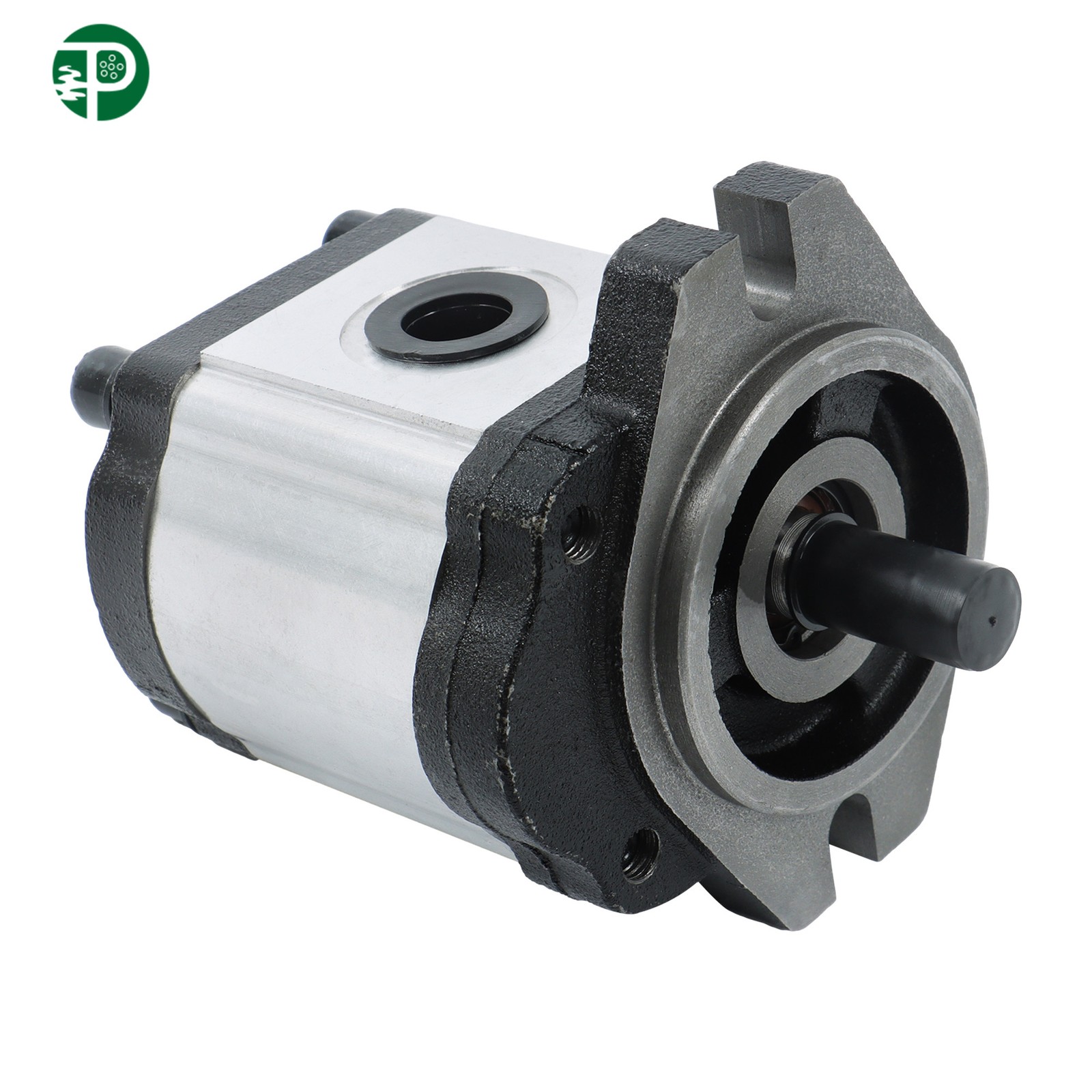

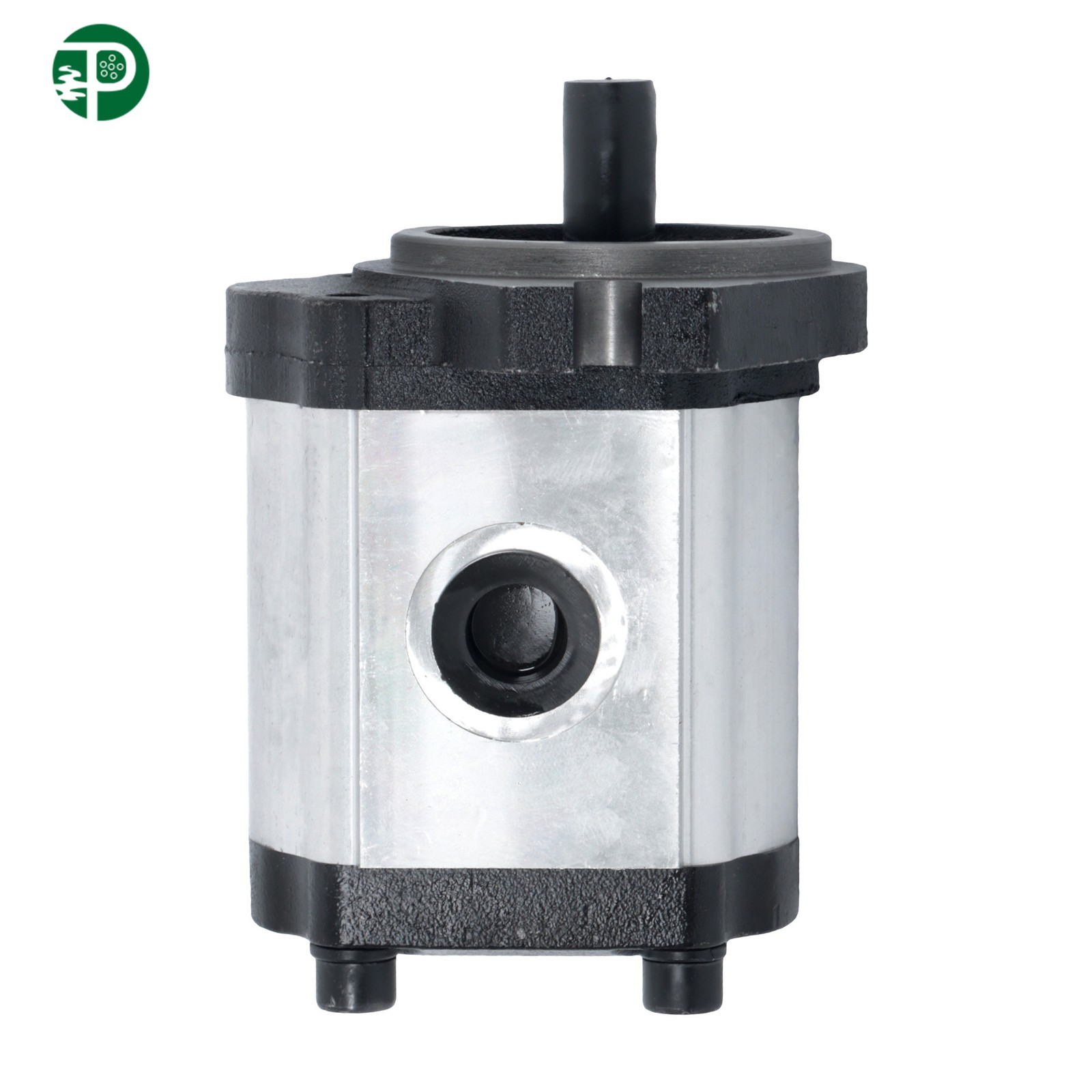

CCW Cast Iron, Hydraulic Gear Pump 2-9 GPM 9 Tooth Spline Shaft, SAE A-2 Bolts
USD 67.75 USD
Specifications
| Country Of Origin | United States |
| Brand | powerfit |
| MPN | PF6933520 |
| Displacement | 0.61 Cubic Inches |
| Pump Action | Counter-Clockwise |
| Max. RPM | 3600 RPM |
| Rated Pressure | 3600 PSI |
| Hydraulic Pump Type | Hydraulic Gear Pump |
| Power Source | Manual |
| Type | Hydraulic |
| Shaft Type | 9 Tooth Spline Shaft |
| Outlet Port | SAE 10 |
| Inlet Port | SAE 12 |
| Warranty | 1 Year |
1.Product Features: Displacement: .61 Cubic Inches Shaft Type: 9 Tooth Spline Shaft Mounting Flange: SAE A-2 Bolts Outlet Port: SAE 10 Inlet Port: SAE 12 MAX Working Pressure: 3600 PSI Direction: Counter-Clockwise (Left) 2 - 9 GPM MAX Speed: 3600 RPM MIN Speed: 700 RPM Cast Iron Body and Mounting Flange Weight: 9 LBS Hydraulics are manufactured with a thru-bolt design; the Mounting flange and rear cover are made of cast iron; SAE A-2 mounting flange; This gear pump has high operational and strength specs. The seals installed reduce the fluid's internal flow and help achieve high volumetric efficiency. 2.Application: .
Related Items
Midwest Bulldog Aviation Snips Thick Material Straight Cut 16ga. Steel Tin USA

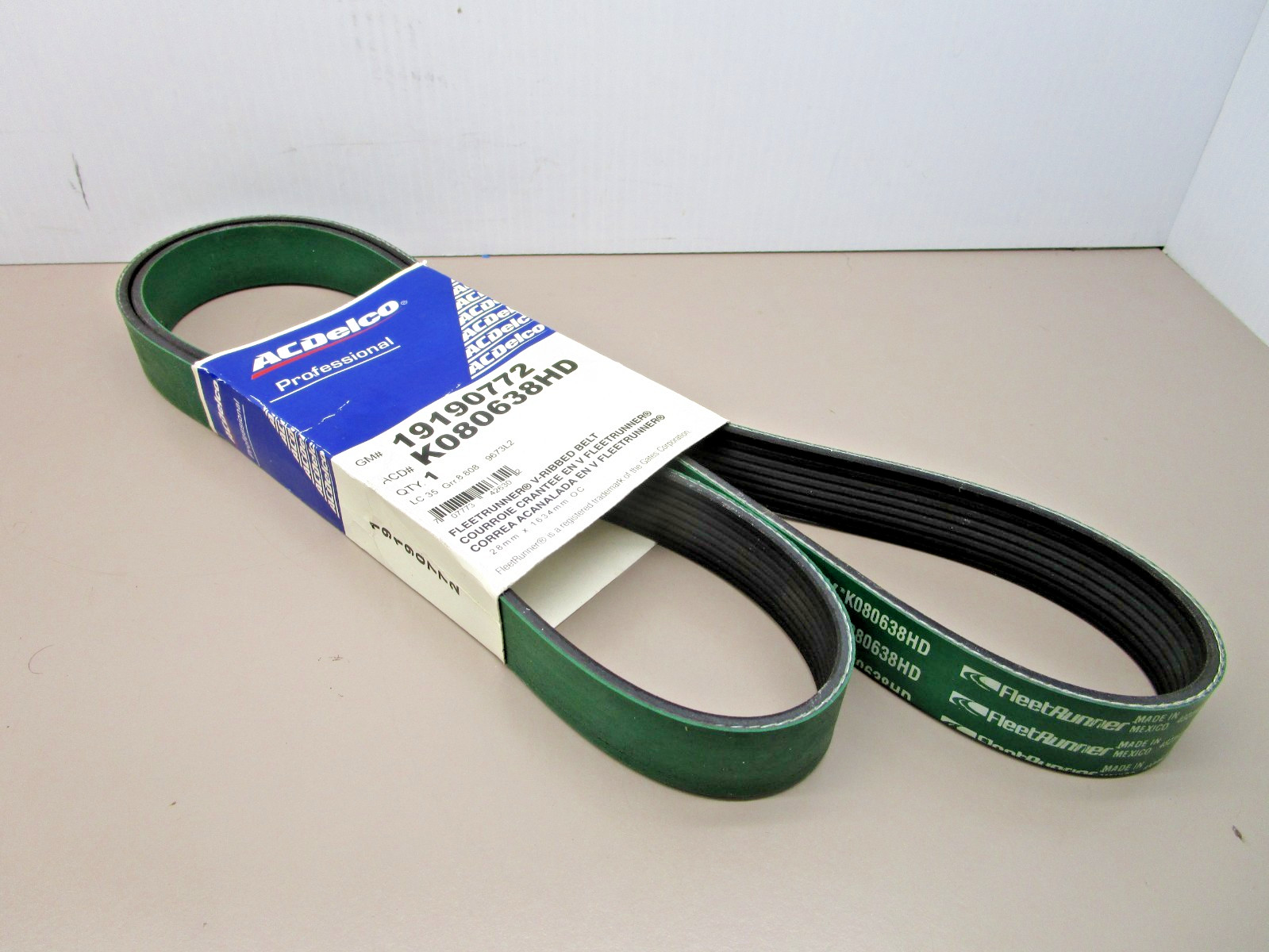

ACDelco K080638HD Gates Fleetrunner V-Ribbed Belt GM 19190772
Pipe caps: domed steel weld on 2 3/8 lot of 100
Ford Jubilee Tractor Hood Emblem Badge NAA16600A original 1953

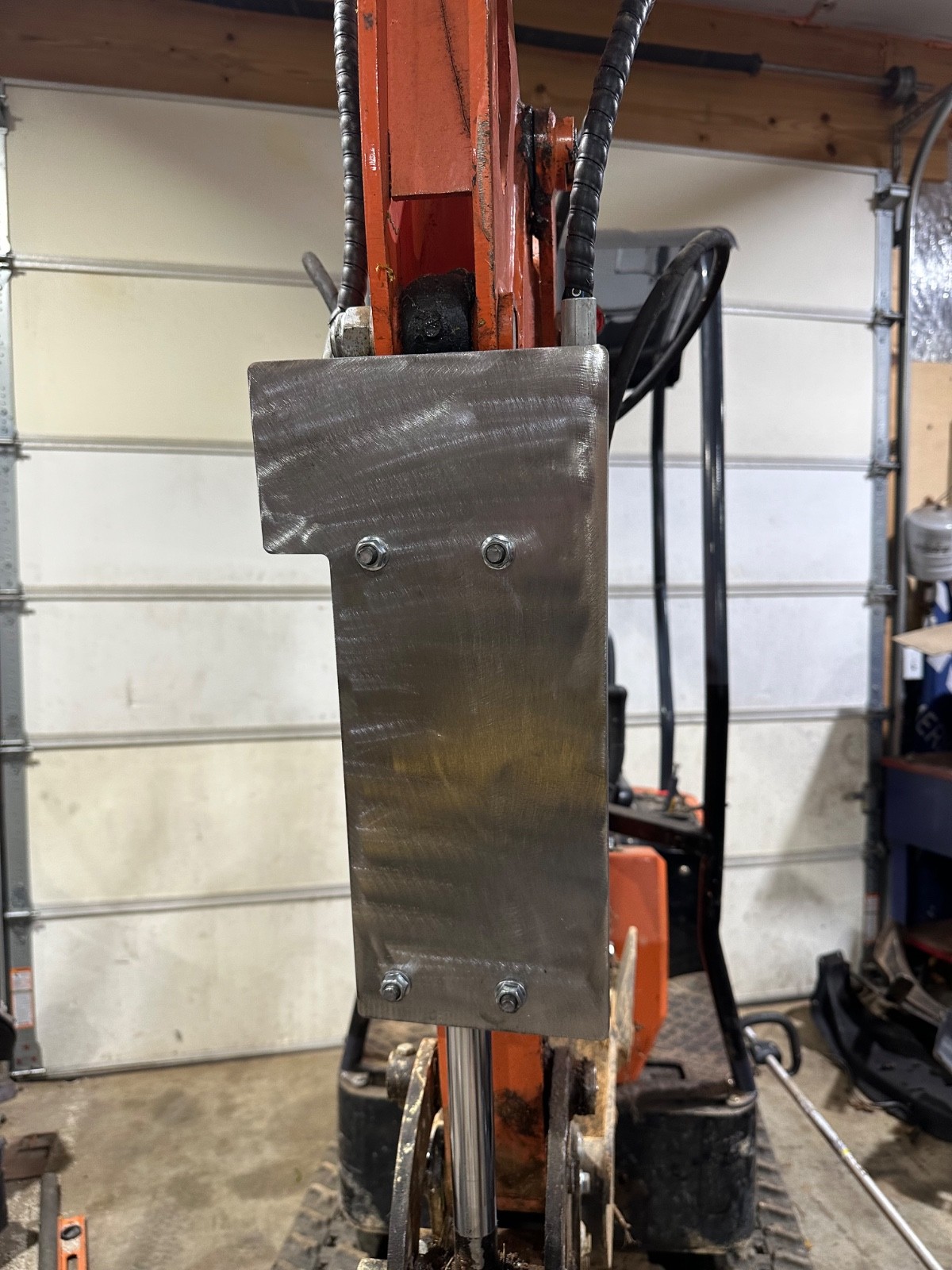

Chinese 1 Ton Mini Excavator Dipperstick Hydraulic Line Guard Shield China Ram
