SSR DC to AC Solid State Relay DC3-32V in Control AC24-480V out 10A-150A MGR-1
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Features | Heavy Duty |
| MPN | MGR-1 |

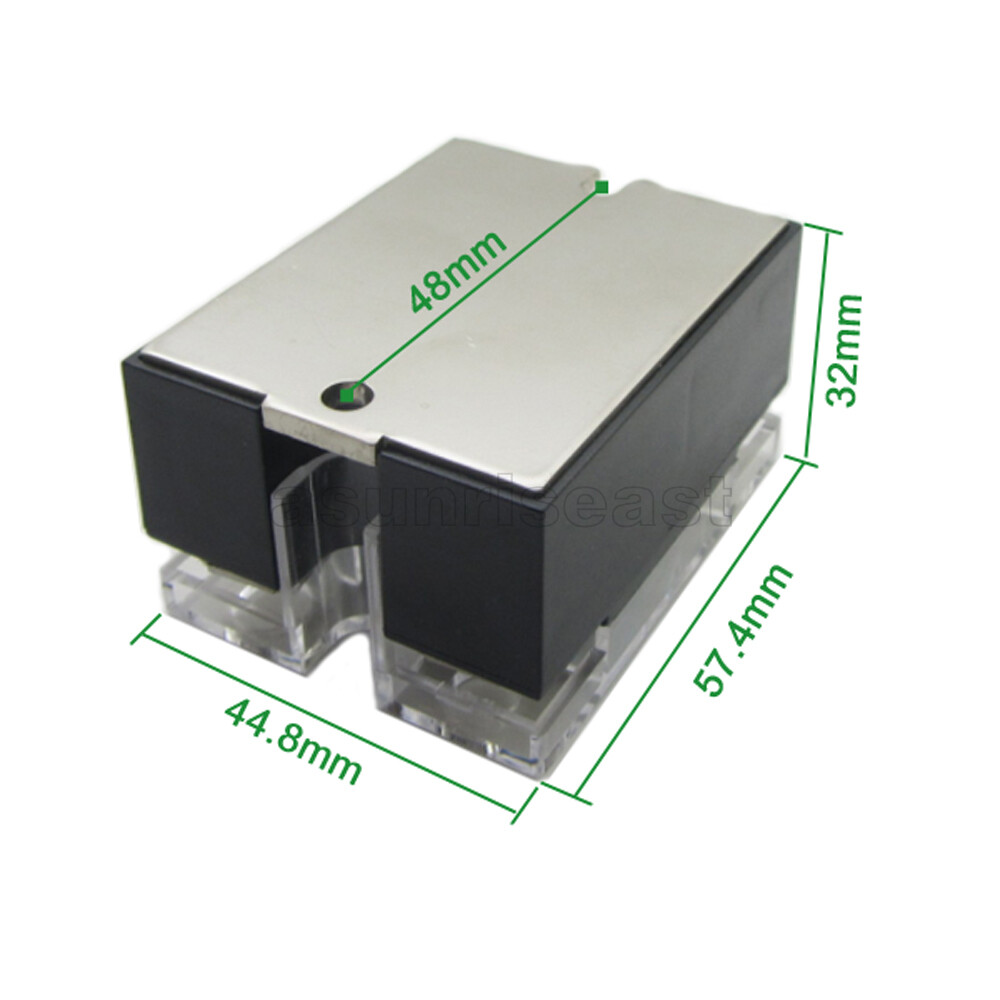

| Item Width | 44.8mm |
| Item Length | 57.4mm |
| Item Height | 28mm |
| Suitable For | Interior |
| Control Voltage | DC 3-32V |
| Brand | MGR |
| Mounting Style | Panel |
| Type | Photo Coupled Relay |
Specification MODEL: MGR-1 INPUT SPECIFICATION Control Voltage(Vdc) :3-32VDC Control Current(Idc) :<25mA Start Current(Idc) :≤5mA Max. Input Current(at Vmax) :40mA Ensuring On Voltage(Vdc) :5VDC Ensuring Off Voltage(Vdc) :<2VDC OUTPUT SPECIFICATION Load Voltage(Vac) :24-480VAC Leakage Current(OFF) : ≤2mA GENERAL FEATURES Dimension L-W-H(mm): 57.4L×44.8W×28H Weight(approx.) :100g ON-OFF time:1/2cycle+1msec Insulation Resistance:2500Vrms Working Temp. : -20℃- +70℃ Working Indicator : LED Please note:high power solid state relays must be equipped with good heat sinks. Package content / lot : 1 x Relay Shipping Item will be shipped to worldwide by air-mail to your eBay registered address. If you need to change your address. please make an annotation or leave us a message. We usually ship the order within 1 business days( excluding Saturday and Sunday) .It takes about 11-23 business days for you to get the package. If you want express shipping ,please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
